Spring-boot启动过程

Spring Boot实现了 auto-configuration 自动配置，降低了项目搭建的复杂度。它主要是为了解决使用Spring框架需要进行大量的配置太麻烦的问题。它集成了大量常用的第三方库配置(例如Jackson, JDBC, Mongo, Redis, Mail等等)，Spring Boot应用中这些第三方库几乎可以零配置的开箱即用。

启动类注解

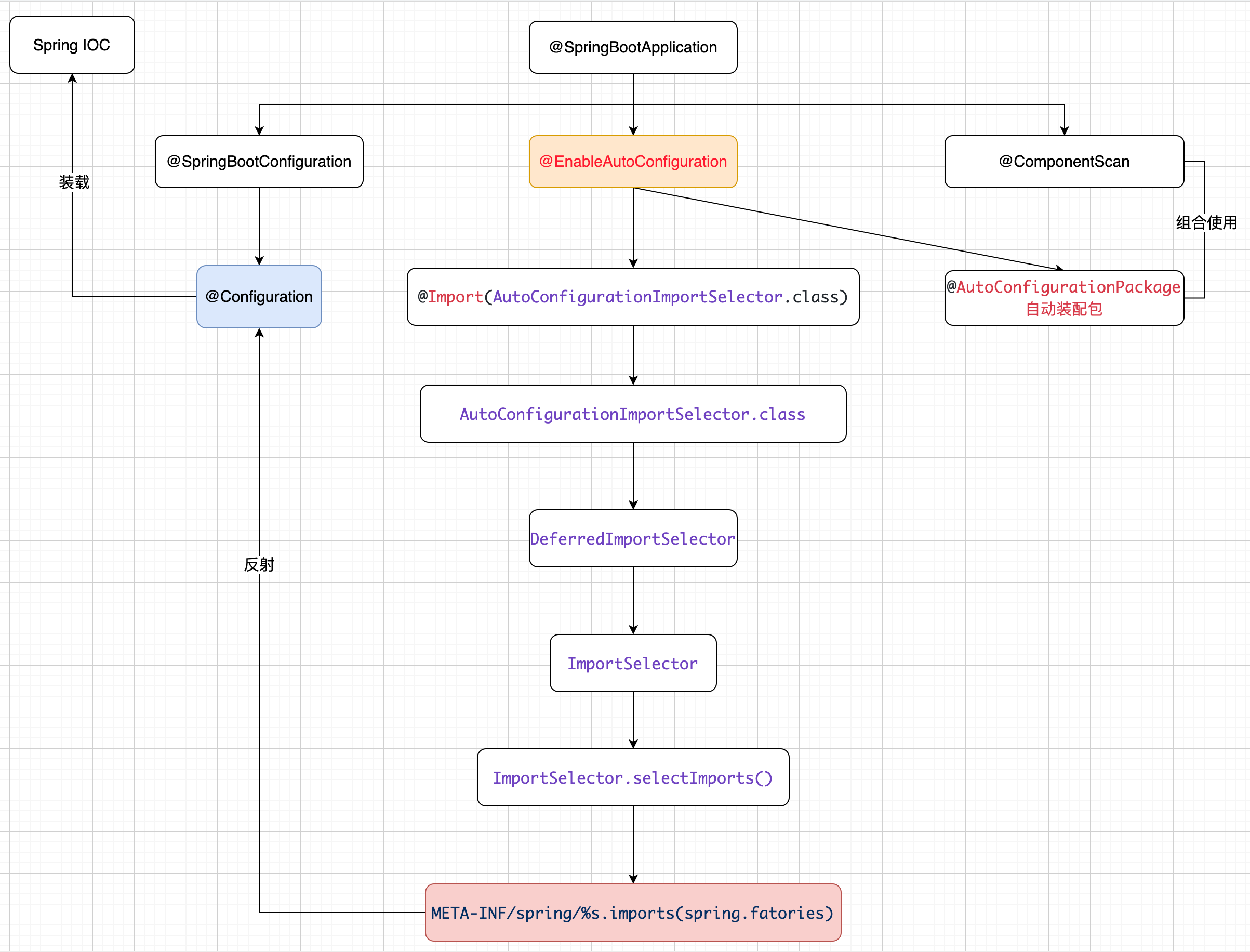

整个启动的过程可以概括为：

  • 读取所有依赖的META-INF/spring/%s%s.imports文件，该文件指明了哪些依赖可以被自动加载
  • 根据importSelector类选择加载哪些依赖，使用conditionOn系列注解排除掉不需要的配置文件
  • 将剩余的配置文件所代表的bean加载到IOC容器中

在spring-boot包中 spring.factories 文件定义了加载哪些类：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# PropertySource Loaders
org.springframework.boot.env.PropertySourceLoader=\
org.springframework.boot.env.PropertiesPropertySourceLoader,\
org.springframework.boot.env.YamlPropertySourceLoader

# ConfigData Location Resolvers
org.springframework.boot.context.config.ConfigDataLocationResolver=\
org.springframework.boot.context.config.ConfigTreeConfigDataLocationResolver,\
org.springframework.boot.context.config.StandardConfigDataLocationResolver

# ConfigData Loaders
org.springframework.boot.context.config.ConfigDataLoader=\
org.springframework.boot.context.config.ConfigTreeConfigDataLoader,\
org.springframework.boot.context.config.StandardConfigDataLoader

# Application Context Factories
org.springframework.boot.ApplicationContextFactory=\
org.springframework.boot.web.reactive.context.ReactiveWebServerApplicationContextFactory,\
org.springframework.boot.web.servlet.context.ServletWebServerApplicationContextFactory

# Run Listeners
org.springframework.boot.SpringApplicationRunListener=\
org.springframework.boot.context.event.EventPublishingRunListener

这此内容会被解析为Map<K, List>这种格式，键和值都是一个类的全限定名。整个SpringBoot的启动过程都是通过 @SpringBootApplication 注解和 SpringApplication.run 方法来实现的。

1
2
3
4
5
6
7
8
9
10
11
12
@Target(ElementType.TYPE) // 注解的适用范围，其中TYPE用于描述类、接口（包括包注解类型）或enum声明
@Retention(RetentionPolicy.RUNTIME) // 注解的生命周期，保留到class文件中（三个生命周期）
@Documented // 表明这个注解应该被javadoc记录
@Inherited // 子类可以继承该注解
@SpringBootConfiguration // 继承了Configuration，表示当前是注解类
@EnableAutoConfiguration // 开启springboot的注解功能，springboot的四大神器之一，其借助@import的帮助
@ComponentScan(excludeFilters = { // 扫描路径设置
@Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),
@Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public @interface SpringBootApplication {
...
}

几个重要注解说明：

  • @SpringBootConfiguration：继承了Configuration，表示当前是注解类
  • @EnableAutoConfiguration：开启springboot的注解功能，springboot的四大神器之一，其借助@import的帮助收集和注册特定场景相关的Bean定义
  • @ComponentScan：扫描路径设置

@EnableAutoConfiguration

功能：从classpath中搜寻所有的 META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports 配置文件，并将其中 org.springframework.boot.autoconfigure.EnableAutoConfiguration 对应的配置项通过反射（Java Refletion）实例化为对应的标注了@Configuration的JavaConfig形式的IoC容器配置类，然后汇总为一个并加载到IoC容器。

1
2
3
4
5
6
7
8
9
10
@SuppressWarnings("deprecation")
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {
...
}

重要的注解与类：

  • @AutoConfigurationPackage
  • AutoConfigurationImportSelector.class

AutoConfigurationPackage

注册当前启动类的根package注册 org.springframework.boot.autoconfigure.AutoConfigurationPackages 的BeanDefinition。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import(AutoConfigurationPackages.Registrar.class)
public @interface AutoConfigurationPackage {
	public static void register(BeanDefinitionRegistry registry, String... packageNames) {
		if (registry.containsBeanDefinition(BEAN)) {
			addBasePackages(registry.getBeanDefinition(BEAN), packageNames);
		}
		else {
			RootBeanDefinition beanDefinition = new RootBeanDefinition(BasePackages.class);
			beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
			addBasePackages(beanDefinition, packageNames);
			registry.registerBeanDefinition(BEAN, beanDefinition);
		}
	}
}

最后通过 @Import(AutoConfigurationPackages.Registrar.class) 注册BeanDefinition到IOC窗口中:

1
2
3
4
5
6
7
8
9
10
11
12
static class Registrar implements ImportBeanDefinitionRegistrar, DeterminableImports {

  @Override
  public void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
    register(registry, new PackageImports(metadata).getPackageNames().toArray(new String[0]));
  }

  @Override
  public Set<Object> determineImports(AnnotationMetadata metadata) {
    return Collections.singleton(new PackageImports(metadata));
  }
}

AutoConfigurationImportSelector

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public class AutoConfigurationImportSelector implements
  DeferredImportSelector,
	BeanClassLoaderAware,
	ResourceLoaderAware,
	BeanFactoryAware,
	EnvironmentAware,
	Ordered {

  private ConfigurableListableBeanFactory beanFactory;
	private Environment environment;
	private ClassLoader beanClassLoader;
	private ResourceLoader resourceLoader;
	private ConfigurationClassFilter configurationClassFilter;

  @Override
	public String[] selectImports(AnnotationMetadata annotationMetadata) {
		if (!isEnabled(annotationMetadata)) {
			return NO_IMPORTS;
		}
		AutoConfigurationEntry autoConfigurationEntry = getAutoConfigurationEntry(annotationMetadata);
		return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
	}

  protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
    if (!isEnabled(annotationMetadata)) {
      return EMPTY_ENTRY;
    }
    AnnotationAttributes attributes = getAttributes(annotationMetadata);

    // 去加载各个组件jar下的 META-INF/spring.factories
    List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);

    configurations = removeDuplicates(configurations);
    Set<String> exclusions = getExclusions(annotationMetadata, attributes);
    checkExcludedClasses(configurations, exclusions);
    configurations.removeAll(exclusions);
    configurations = getConfigurationClassFilter().filter(configurations);
    fireAutoConfigurationImportEvents(configurations, exclusions);
    return new AutoConfigurationEntry(configurations, exclusions);
	}
}

借助AutoConfigurationImportSelector，让SpringBoot应用将所有符合条件的bean定义都加载到当前SpringBoot创建并使用的IoC容器。

SpringApplication#run()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
  return new SpringApplication(primarySources).run(args);
}

public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
  this.resourceLoader = resourceLoader;
  Assert.notNull(primarySources, "PrimarySources must not be null");
  this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
  this.webApplicationType = WebApplicationType.deduceFromClasspath();
  this.bootstrapRegistryInitializers = new ArrayList<>(
      getSpringFactoriesInstances(BootstrapRegistryInitializer.class));
  setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
  setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
  this.mainApplicationClass = deduceMainApplicationClass();
}

SpringApplication#run方法，首先要创建一个SpringApplication对象实例，然后调用这个创建好的SpringApplication的实例方法。在SpringApplication实例初始化的时候，它会提前做几件事情：

  • 根据classpath里面是否存在某个特征类org.springframework.web.context. ConfigurableWebApplicationContext来决定是否应该创建一个为Web应用使用的ApplicationContext类型。
  • 使用SpringFactoriesLoader在应用的classpath中查找并加载所有可用的ApplicationContextInitializer。
  • 使用SpringFactoriesLoader在应用的classpath中查找并加载所有可用的ApplicationListener。
  • 推断并设置main方法的定义类。

SpringApplication实例初始化完成并且完成设置后，会开始执行run方法的逻辑。run方法中会初始化如下模块：

  • SpringApplicationRunListeners：应用启动监听器模块
  • ConfigurableEnvironment：配置环境模块
  • ConfigurableApplicationContext：应用上下文模块
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public ConfigurableApplicationContext run(String... args) {
  Startup startup = Startup.create();
  if (this.registerShutdownHook) {
    SpringApplication.shutdownHook.enableShutdownHookAddition();
  }

  DefaultBootstrapContext bootstrapContext = createBootstrapContext();
  ConfigurableApplicationContext context = null;
  configureHeadlessProperty();
  SpringApplicationRunListeners listeners = getRunListeners(args);
  listeners.starting(bootstrapContext, this.mainApplicationClass);
  try {
    ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
    ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
    Banner printedBanner = printBanner(environment);
    context = createApplicationContext();
    context.setApplicationStartup(this.applicationStartup);

    prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
    refreshContext(context);
    afterRefresh(context, applicationArguments);
    startup.started();
    if (this.logStartupInfo) {
      new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), startup);
    }
    listeners.started(context, startup.timeTakenToStarted());
    callRunners(context, applicationArguments);
  }
  catch (Throwable ex) {
    throw handleRunFailure(context, ex, listeners);
  }
  try {
    if (context.isRunning()) {
      listeners.ready(context, startup.ready());
    }
  }
  catch (Throwable ex) {
    throw handleRunFailure(context, ex, null);
  }
  return context;
}

上面代码有几个关键步骤：

  • SpringApplicationRunListeners listeners = getRunListeners(args), 创建了应用的监听器SpringApplicationRunListeners并开始监听
  • 加载SpringBoot配置环境(ConfigurableEnvironment)，如果是通过web容器发布，会加载StandardEnvironment，其最终也是继承了ConfigurableEnvironment
  • prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner)配置环境(Environment)加入到监听器对象中(SpringApplicationRunListeners)
  • refreshContext(context) 注册 ConfigurableApplicationContext context 到 spring ioc
